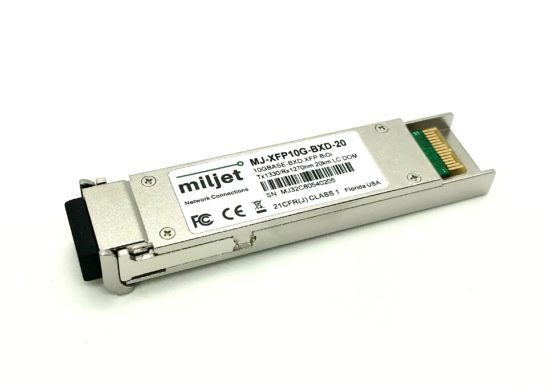

The MJ-XFP10G-BXD-20 series single mode transceiver is small form factor pluggable module for optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. It is with the XFP 20-pin connector to allow hot plug capability. The MJ-XFP10G-BXD-20 module is designed for single mode fiber and operates at a nominal wavelength of 1270nm or 1330nm; The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. The transceiver designs are optimized for high perform -ance and cost effective to supply customers the best solutions for telecommunication. The XFP Miljet BiDi uses only 1 Fiber for data reception transmission, and can reach up to 20Km with low insertion loss.
Available on backorder
