Overview

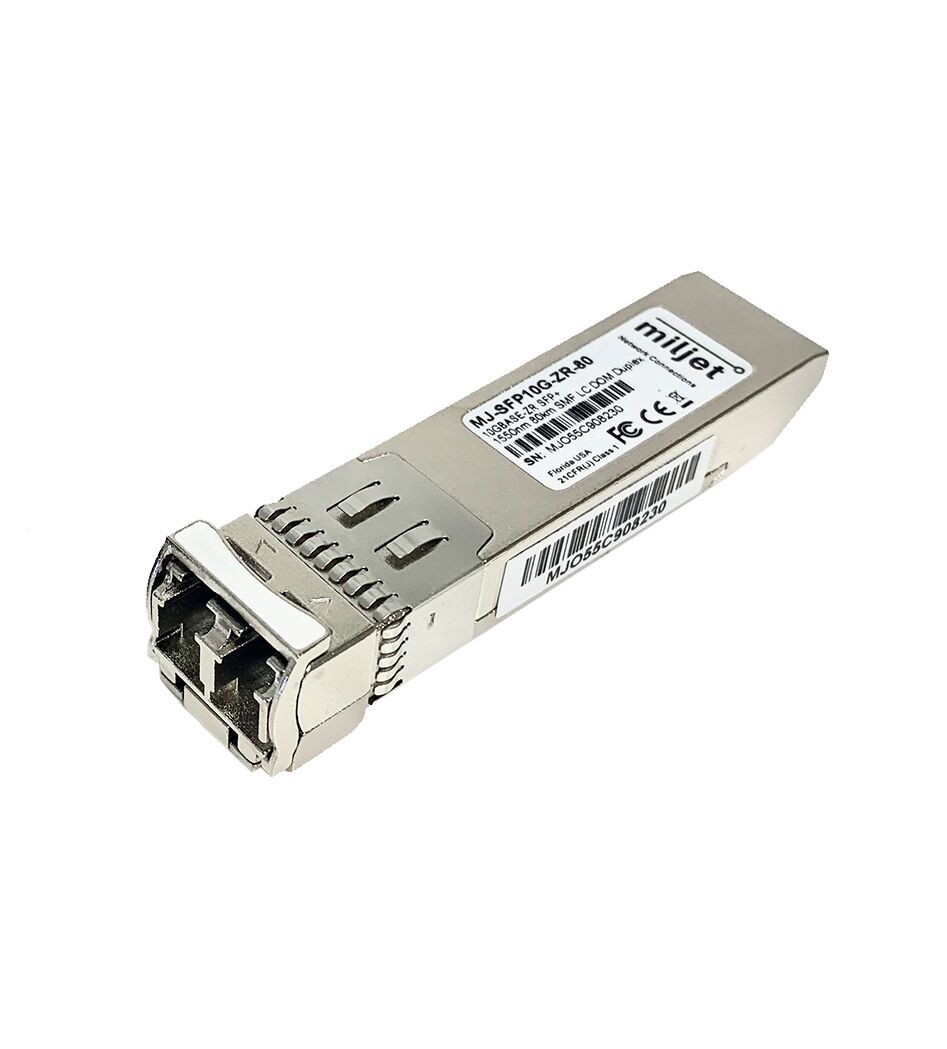

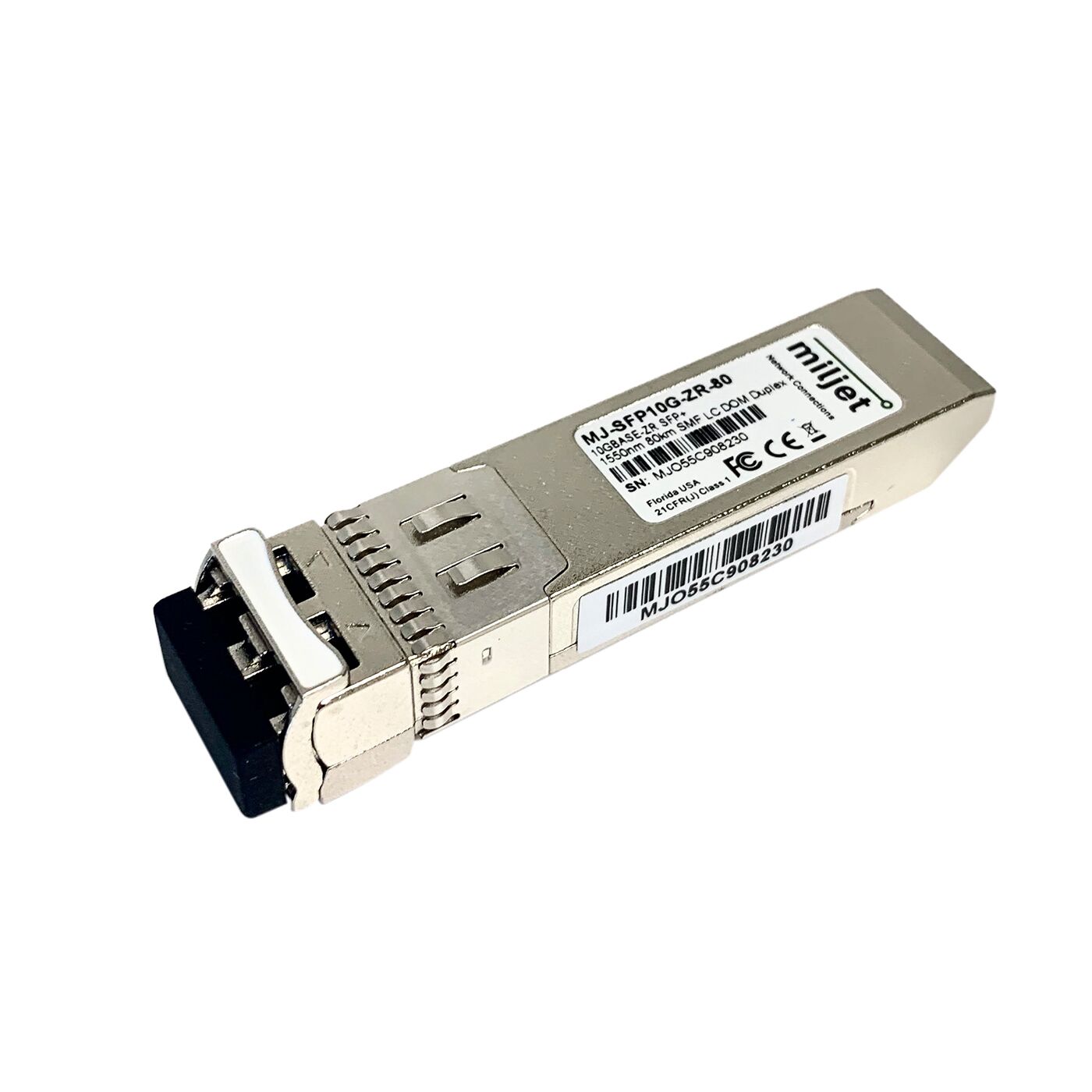

The MJ-SFP10G-ZR-80 is SFP+ ZR transceiver is specifically designed for the high performance integrated duplex data transmission over single mode optical fiber. This transceiver module is compliant with Enhanced Small Form Factor Pluggable Module SFP+ Multisource Agreement (SFF-8431).This transceiver type is specifically optimized for transport of serial data at 10.3125Gbps. The Mini-Gbic Miljet is also for 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-ZR/ZW EthernetApplications, with 1550nm Wavelength with capacity to reach up to 80km with low loss of less than 0.22dBm/km and EMI compatible with FCC Part 15 Class B and with Laser Eye Safety compatible with FDA 21CFR 1040.10 and 1040.11 EN60950.
Manufacturer Name: MILJET SOLUTIONS, INC. Florida USA
Part Number: MJ-SFP10G-ZR-80
Model: SFP+ (10GBASE-ZR/ZW and OTU2E)
Data rate/capacity: 11.0957Gbps
Maximum Distance: 80km
Wavelength: 1550nm (EML Laser with ADP Photodiode)
TX Power/Power: 0 ~ 4dBm
RX Receiver Sensitivity: < -23dBm
Dispersion: 1600ps/nm
Interface: LC Duplex Connector (Indicated Polishing PC or UPC)
Cable Type: Single-Mode Fiber (SMF) 9/125µm
MTBF: 426,514,897 hours
DOM/DDM Optical Digital Monitoring: Yes
Dimensions/Weight: 58.4mm x 13.9mm x 13mm -20g
Temperature Range: 0°C to +70°C | Single +3.3V
Compliance: ISO9001, FCC, CE, UL, RoHS, SFP+ MSA, Class 1 Laser.
Condition: NEW in Box
Compatible with: Cisco, Mikrotik, Planet, Ubiquiti, Tp-link, D-Link, Arista, Huawei, Trendnet, Linksys, Netgear, Zyxel. For other brands please contact us.
