40GBase-SR-BD QSFP+, 850nm, 150m, Tx-Rx Bi-Di, Multimode, DDM, LC Duplex, Optical Transceiver Module

40GBase-SR-BD QSFP+, 850nm, 150m, Tx-Rx Bi-Di, Multimode, DDM, LC Duplex, Optical Transceiver Module

Overview

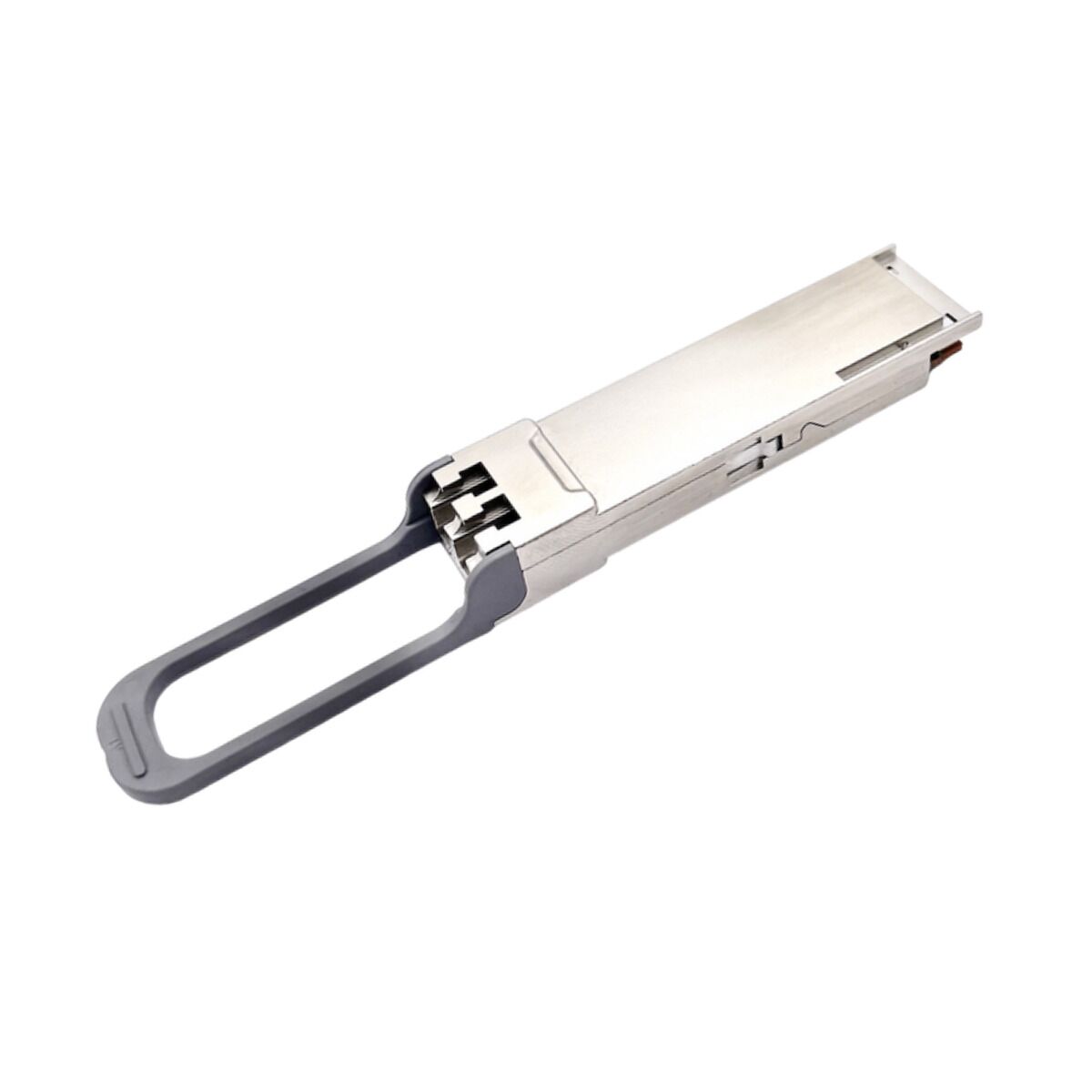

The MJ-QSFP40GSR-BD  Bi-Directional (BiDi) transceiver  is a pluggable optical transceiver with a Duplex LC connector interface for short-reach data communication and interconnect applications using MultiMode Fiber (MMF). The MJ-QSFP40GSR-BD transceiver offers customers a compelling solution that enables reuse of their existing 10 Gigabit Duplex MMF infrastructure for migration to 40 Gigabit Ethernet connectivity. The MJ-QSFP40GSR-BD transceiver supports link lengths of 100 and 150 meters on laser-optimized OM3 and OM4 multimode fibers, respectively. The MILJET QSFP+ BD transceiver complies with the QSFP MSA specification, enabling customers to use it on all QSFP 40-Gbps platforms to achieve high-density 40 Gigabit Ethernet networks.

Please Note: Each MILJET QSFP 40-Gbps BiDi transceiver consists of two 20-Gbps transmit and receive channels in the 832-918 nanometer wavelength range, enabling an aggregated 40-Gbps link over a two-strand multimode fiber connection.

Specification

Manufacturer Name: MILJET SOLUTIONS, INC, Florida USA
Part Number: MJ-QSFP40GSR-BD
Model Format: QSFP+
Data rate/capacity: 40 Gbps
Maximum Distance: 150m (OM4) and 100m (OM3)
Wavelength: 850nm VSCEL Laser
TX Power/Power: -4 ~ 5dBm
RX Receive Sensitivity: < -6dBm
Interface: LC Duplex Connector (Polish Indicated PC or UPC)
Cable Type: Multimode Fiber (MMF)
MTBF: 1,649,326 hours
DOM/DDM Optical Digital Monitor: Yes
Dimensions/Weight: 13mm x 72mm x 18.4mm – 32g
Temperature Range: 0°C to +70°C | Single +3.3V
Compliance: FCC, CE, RoHS, QSFP+ MSA, Class 1

Condition: NEW in Box
Lifetime Warranty (with conditions)
Compatible with: Cisco, Mikrotik, Ubiquiti, Tp-link, D-Link, Arista, Huawei, ZTE, FiberHome, Trendnet, Linksys, Netgear, Zyxel. For other brands please contact us.

For a quote, contact us.
