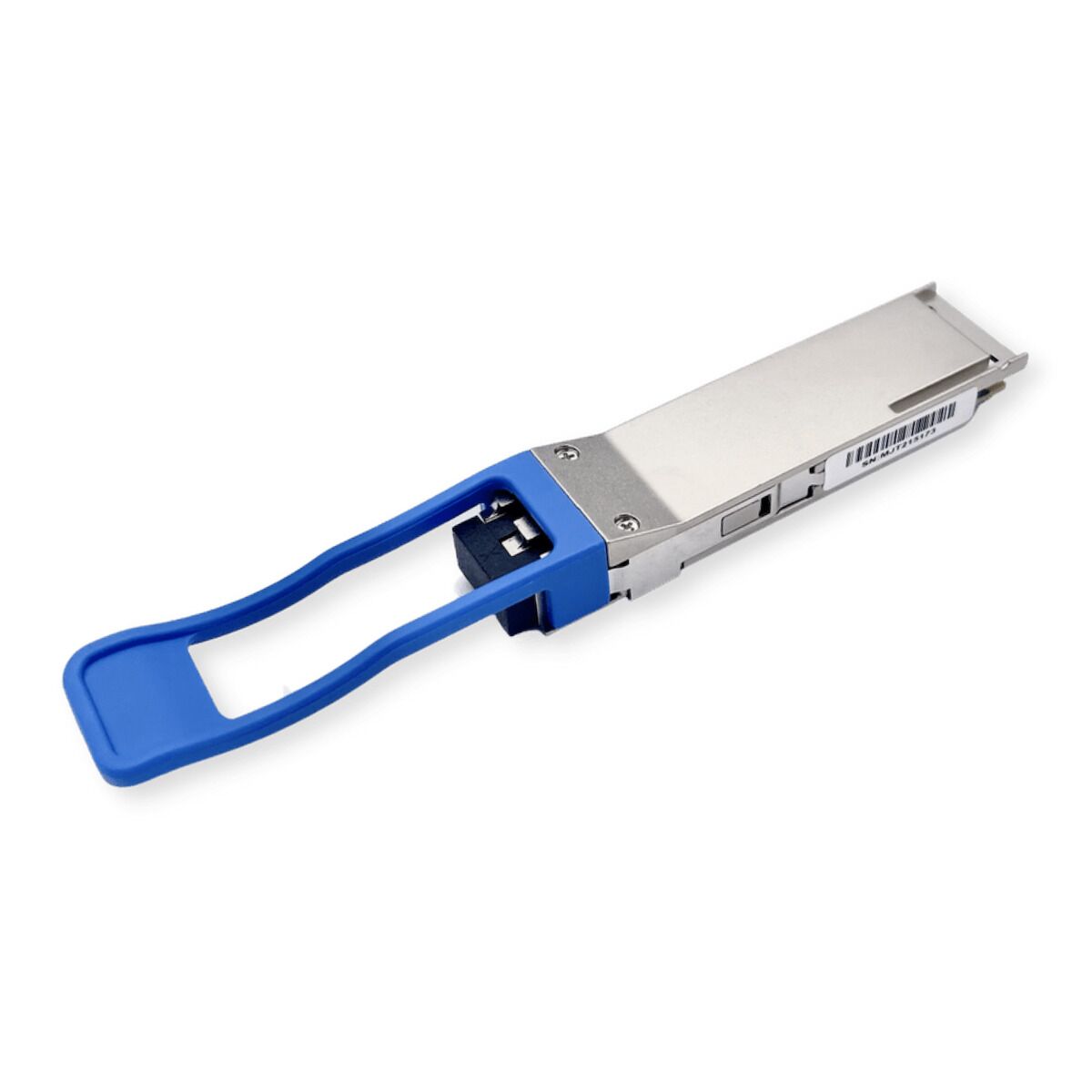

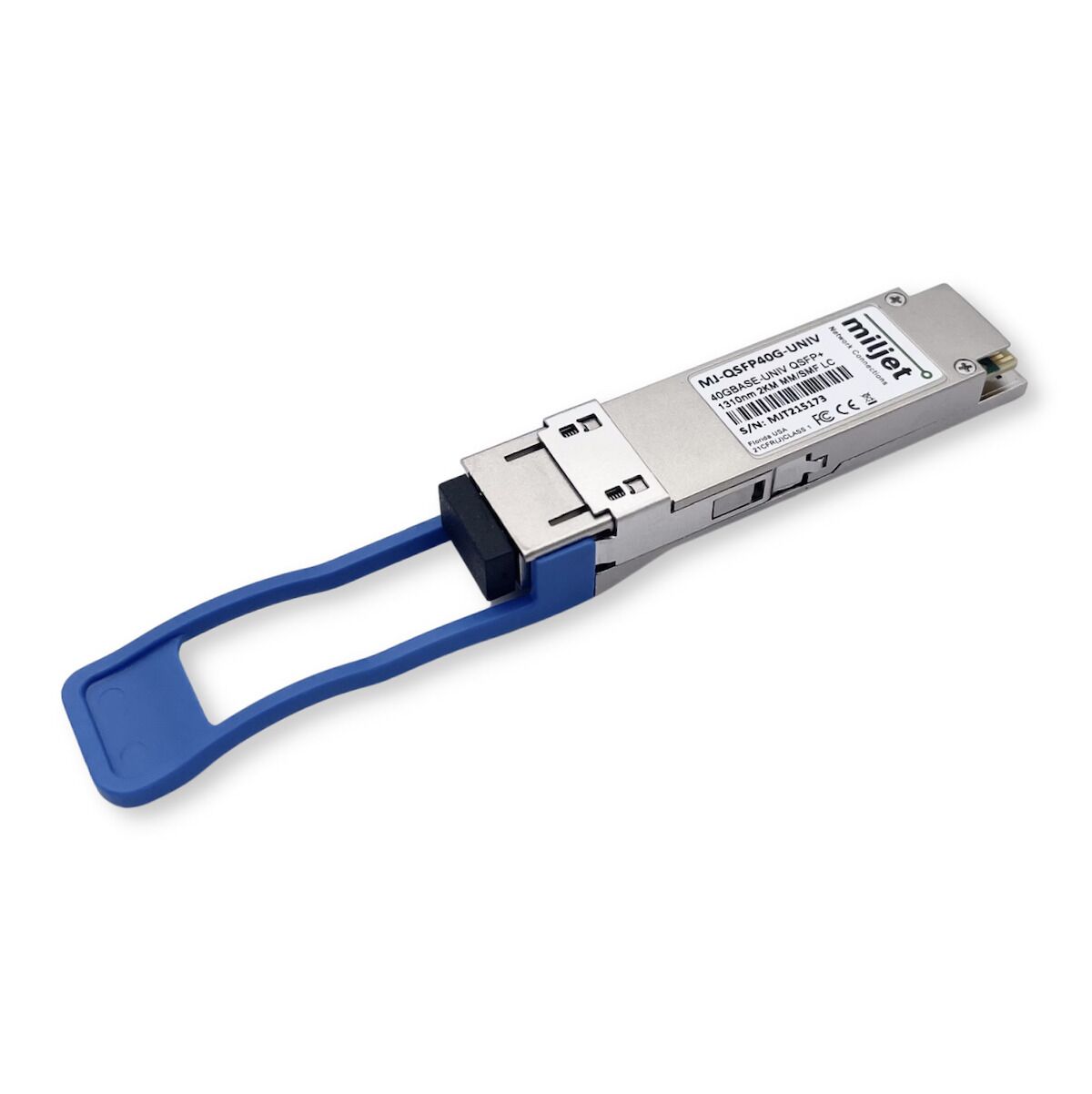

40GBase-UNIV, QSFP+ LX4, 1310nm, 2km, Hybrid Multimode and Single Mode Fiber, DDM, LC Duplex, Optical Transceiver Module

40GBase-UNIV, QSFP+ LX4, 1310nm, 2km, Hybrid Multimode and Single Mode Fiber, DDM, LC Duplex, Optical Transceiver Module

Overview
The MJ-QSFP40G-UNIV Miljet is a QSFP+ LX4 Hybrid transceiver that operates over 4 channels of 10Gbps parallel Tx/Rx over multimode optical fiber (MMF) OM3 onwards up to 150m, and up to 2km over singlemode fiber (SMF) using a length of 1310nm waveform via duplex LC connectors, this module provides four independent optical communication bands. The most popular applications are for Internet Service Providers (ISP) in traffic aggregations, mobile operators and 40G back-haul, Network site interconnects in Data Centers and other optical links. This transceiver is compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-LM4 standard. Digital diagnostic functions are also available through the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters.

Specification

Manufacturer Name: MILJET SOLUTIONS, INC. Florida USA
Part Number: MJ-QSFP40G-UNIV (QSFP-LX4-40G)
Model Format: QSFP+ (Quad Small Form-factor Pluggable)
Data rate/capacity: 41.2Gbps (4×10.3Gbps)
Maximum Distance: Up to 150m via Multimode OM3 and 2km via Singlemode OS2
Wavelength: 1310nm (DFB CWDM Transmitter, PIN Receiver).
TX Power/Power: -10~2.3dBm
RX Receiver Sensitivity: < -13.7dBm
On Reception Load: MMF 4.3dBm / SMF 2.3dBm
Interface: LC Duplex
Cable Type: Multimode 50/125µm OM3+ or Singlemode OS2 9/125.
DOM/DDM Optical Digital Monitoring: Yes
Hot-swappable: YES
Dimensions/Weight: 13mm x 72mm x 18.4mm – 32g
Temperature Range: 0°C to +70°C | Single +3.3V
Compliance: FCC, CE, RoHS, 10G Ethernet, 40G Ethernet, OTU3, OTU3e2

Condition: NEW in Box
Lifetime Warranty (with conditions)
Compatible with: Cisco, Mikrotik, Ubiquiti, Tp-link, D-Link, Arista, Huawei, ZTE, FiberHome, Trendnet, Linksys, Netgear, Zyxel. For other brands please contact us.

For a quote, contact us.
