40GBase-LR4, PSMLR, QSFP+, 1310nm, 10km, Single Mode Fiber, DDM, Connector MTP®/MPO, Optical Transceiver Module

40GBase-LR4, PSMLR, QSFP+, 1310nm, 10km, Single Mode Fiber, DDM, Connector MTP®/MPO, Optical Transceiver Module

Overview

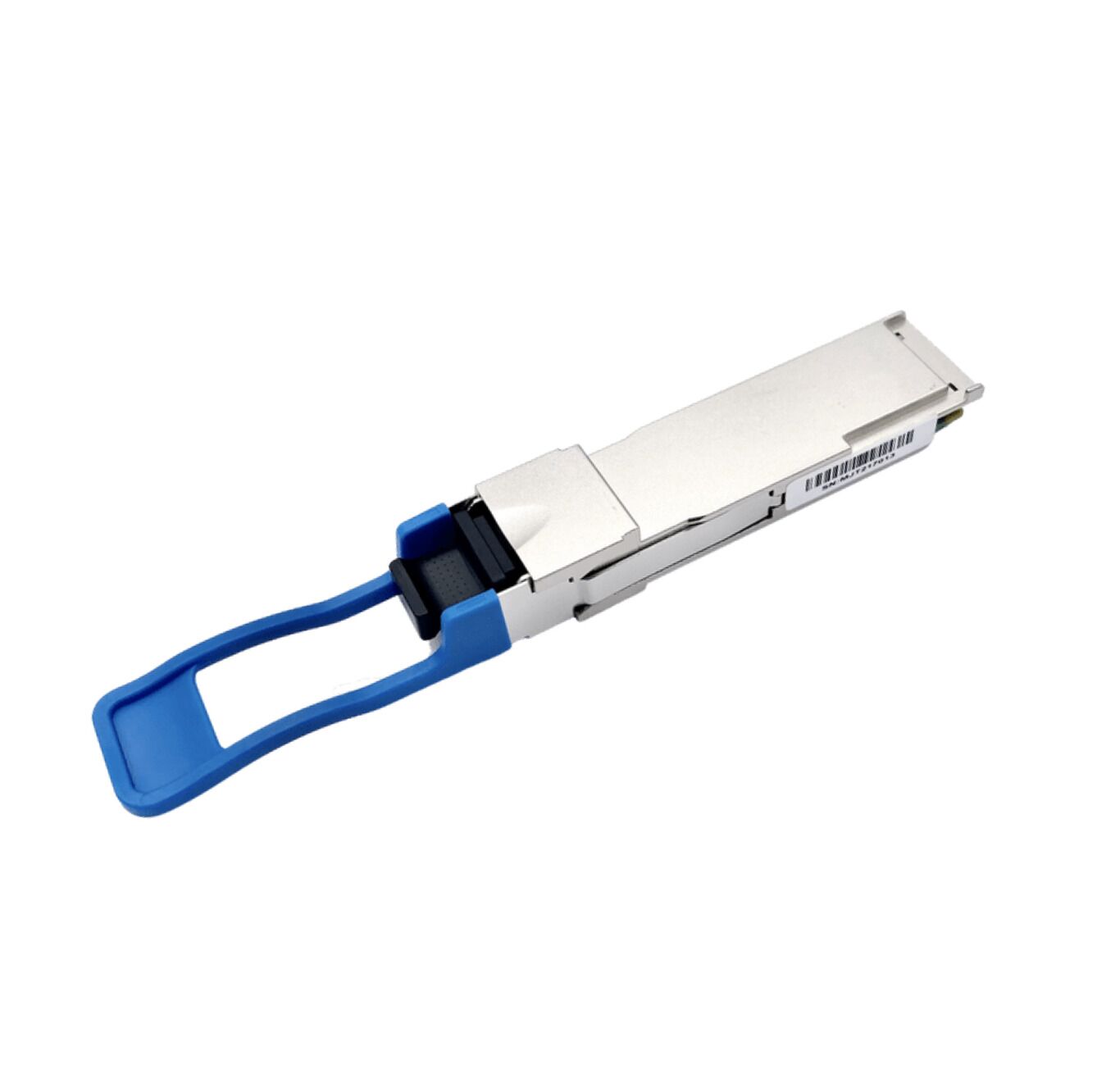

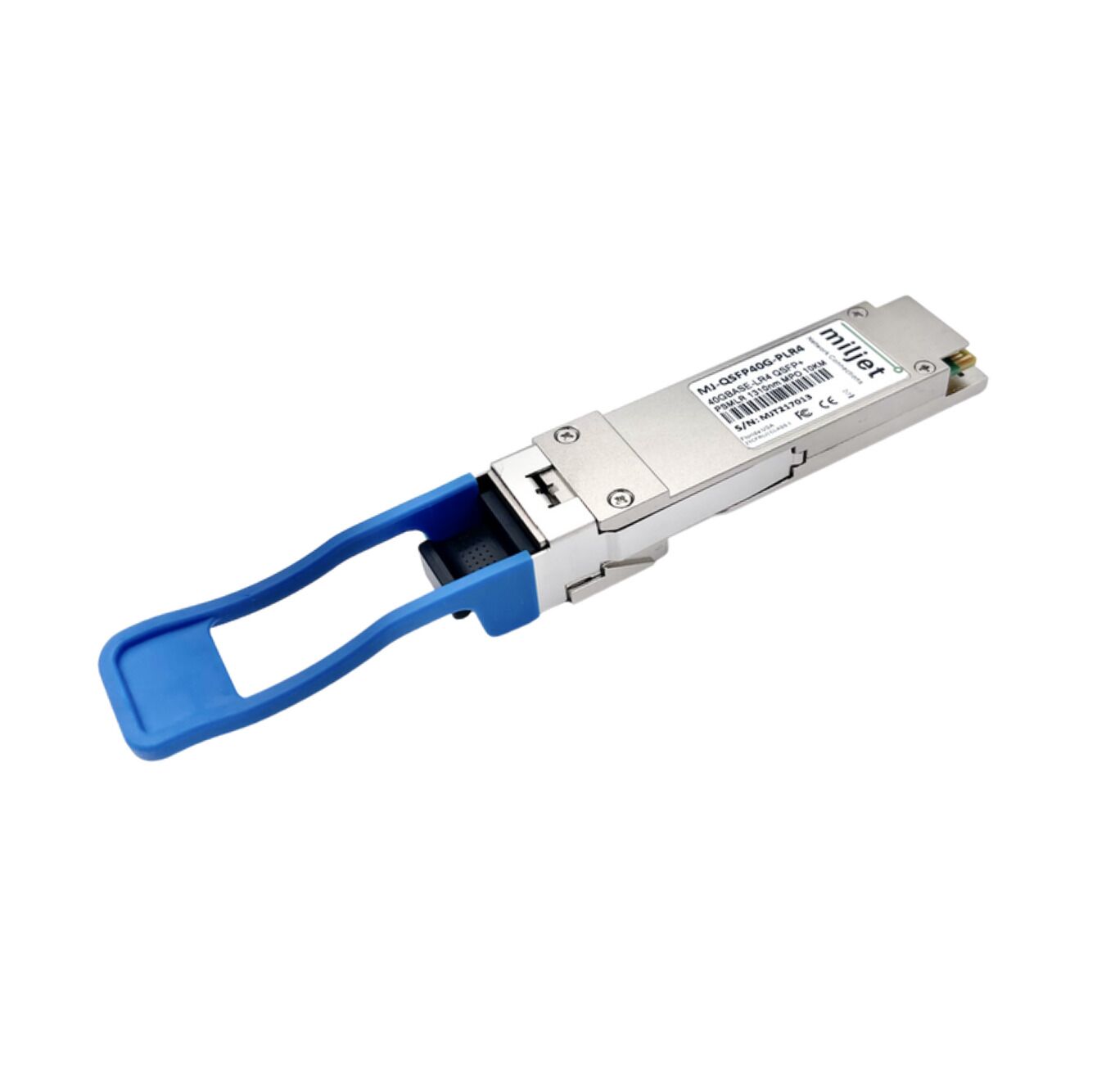

The Miljet MJ-QSFP40G-PLR4 QSFP+ Optical Transceiver Module is designed for use in 40GBASE Ethernet throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via a MTP/MPO-12 connector. This transceiver is compliant with QSFP+ MSA and IEEE 802.3ae 10GBASE-LR/LW standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.

Specification

Manufacturer Name: MILJET SOLUTIONS, INC. Florida USA
Part Number: MJ-QSFP40G-PLR4
Model Format: QSFP+ (Quad Small Form-factor Pluggable)
Data rate/capacity: 41.25Gbps (4 channels 10.3G 1270,1290,1310,1330nm)
Maximum Distance: 10km
Wavelength: 1310nm (DFB CWDM/PIN Photodiode Laser
TX Power/Power: -8.2~0.5dBm
RX Receiver Sensitivity: < -14.4dBm
Interface: MTP®/MPO-12 Male
Cable Type: Singlemode Fiber (SMF)
MTBF: 244.610,583 hours
DOM/DDM Optical Digital Monitor: Yes
Hot-swappable: Yes
Host FEC: Supported
Dimensions/Weight: 13mm x 72mm x 18.4mm – 32g
Temperature Range: 0°C to +70°C | Single +3.3V
Compliance: FCC, CE, RoHS, MSA QSFP+, Infiniband, 40G Ethernet,

Condition: NEW in Box
Lifetime Warranty (with conditions)
Compatible with: Cisco, Mikrotik, Ubiquiti, Tp-link, D-Link, Arista, Huawei, ZTE, FiberHome, Trendnet, Linksys, Netgear, Zyxel. For other brands please contact us.

For a quote, contact us.
